Description

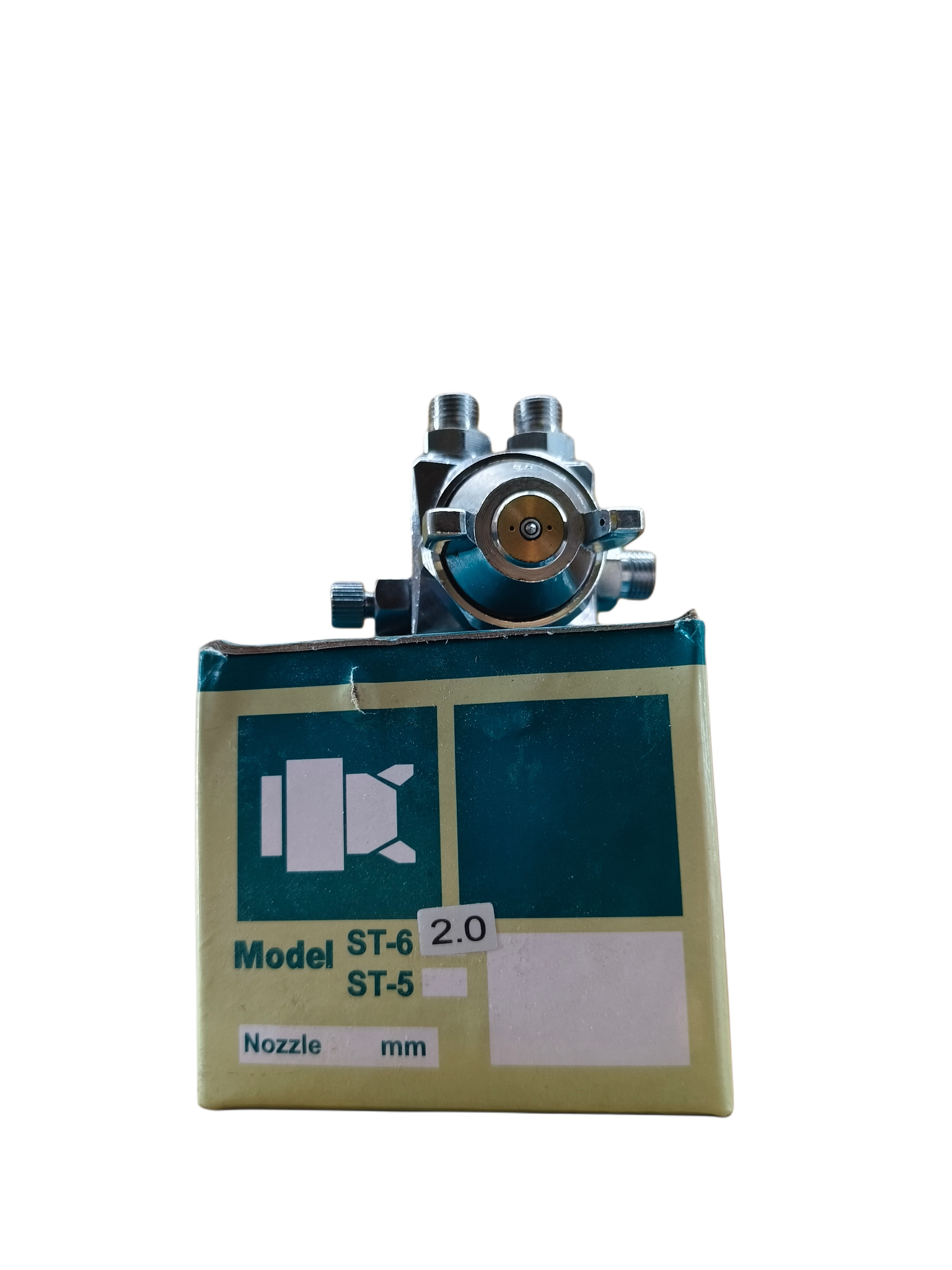

# Model No. – ST-5/ST-6 # Operating Pressure – 30-50 psi # Nozzle Size (mm) – 0.5, 1.0, 1.3 # Feed – Pressure # Air Inlet – 6 mm PARAMOUNT ST-6 Pneumatic Adjustable Pressure Feed Automatic Spray Gun for Liquid Spraying,Heavy Duty Sprayer Set with CYL (ST-6 1.3MM). About this item This spray set is pressure feed,which mean you would need to equip them with diaphragm pump and air compressor,Please refer to the connection diagram for installing. Commonly used pressure range:0.15~0.4Mpa,Low pressure type,the action of the spray gun piston is not affected by the atomizing air pressure, and the atomized particle size can be adjusted according to actual needs. Liquid flow:0-600ml/min;Maximum spray width:400mm;Air consumption:140I/min,Easy to install, Particularly suitable for large area spraying or concave side spraying. Ignore the concentration of the spray medium, as long as the air pressure and flow are controlled, the perfect result can be achieved.like water;oil;paint;lubricating oil or Solvent. Widely used in: machinery, electronics, printing, food, medicine, automotive, building materials, demoulding, etc.
